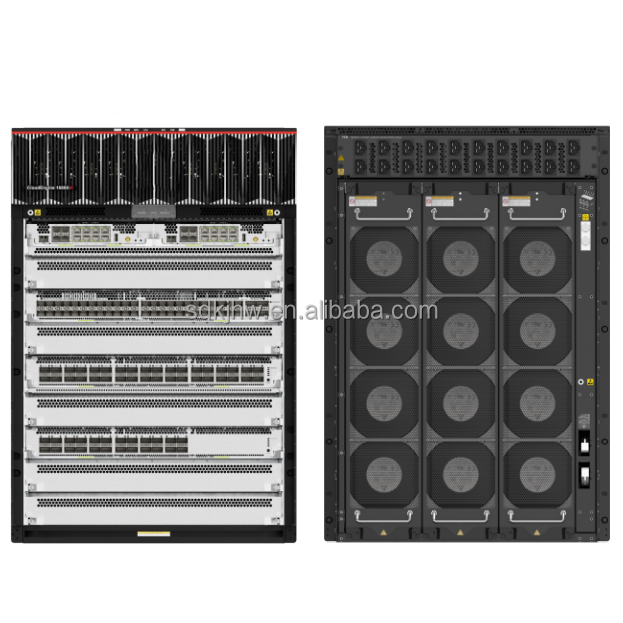

CE16800-X8-AH CloudEngine 16800-X Series Core Switch The Ultimate Networking Solution

Model Number : CE16800-X8-AH

Type : Enterprise Switch

Place of Origin : Guangdong, China

Brand Name : HW

Use : Large enterprises, data centers, high load servers

model : CE16800-X8 Data center switch

Switch Capacity : 357/774 Tbps

Forwarding Performance : 52,200 Mpps

Slots : 16*Service slots,9*SFU slots

Warranty : 1 Year / 12 Months

Dimensions (H x W x D) : 703mm*483mm*985mm(15.8 U)

Quality : 100% Original 100% Brand

Maximum power supply : 30,000 W

Weight : 129.8 kg

Function : LACP, QoS, Stackable, LACP, Stackable

Packaging Details : Carton or wooden box

Supply Ability : 1000 Unit/Units per Month

MOQ : 2 units

Price : $2,450.00/units 2-29 units

Contact Now

Product Description

CE16800-X8-AH CloudEngine 16800-X Series Core Switch The Ultimate Networking Solution

CloudEngine S16800-X Series100G core Enterprise Switches CloudEngine S16800-X8

Huawei CloudEngine 16800 is a data center switch developed for the intelligence era. It applies to integrated big data centers and cross-region computing power scheduling scenarios such as "East-to-West Computing Resource Transfer". In 2023, Huawei comprehensively upgrades the CloudEngine 16800 series switches and launches the CE16800-X — industry's first core switch designed for the diversified computing era. This switch comes with high-density 400GE and intelligent scheduling algorithms, ideal for accelerating the unleash of computing power. In addition, Huawei's hyper-converged Ethernet technology enables unified bearer of general-purpose computing, storage, and supercomputing networks, minimizing the CTO.

Specification

Item	CloudEngine 16800-X8
Type	Data center switch
Switch Capacity	357/774 Tbps
Forwarding Performance	52,200 Mpps
Service slots	8
Dimensions with packaging (H x W x D)	990 mm x 770 mm x 1150 mm
Dimensions without packaging (H x W x D)	703 mm (15.8U) x 483 mm x 985 mm(including mounting brackets)
Weight without packaging	129.8 kg (including two MPUs and filler panels)
Weight without packaging	253.1 kg
Weight with packaging	177 kg
Maximum power supply capability of the system	30,000 W
Switching fabric module slots	8(Scalable to 9 for future expansion)
switch architecture	Clos orthogonal architecture, cell switching, VoQ
Number of power modules	10
Air duct type	Standard front-to-rear airflow
Environment requirements	Operating temperature: 0°C to 40°C (0 m to 1800 m) Storage temperature: –40°C to +70°C Relative humidity: 5% RH to 95% RH (noncondensing)
Operating voltage	AC: 176 V to 290 V, 45 Hz to 65 Hz High-voltage DC (HVDC): 188 V to 288 V/260 V to 400 V
IP routing	IPv4 dynamic routing protocols such as RIP, OSPF, IS-IS, and BGP
IP routing		IPv6 dynamic routing protocols such as RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv6	VXLAN over IPv6
		IPv6 VXLAN over IPv4
		IPv6 neighbor discovery (ND)
		Path MTU discovery (PMTU)
		TCP6, IPv6 ping, IPv6 tracert, IPv6 socket, UDP6, and raw IPv6
Reliability	LACP
		STP, RSTP, VBST, and MSTP
		BPDU protection
		Smart link and multi-instance
		Hardware-based Bidirectional Forwarding Detection (BFD), with a minimum packet sending interval of 3.3 ms
		VRRP, VRRP load sharing, and BFD for VRRP
		BFD for BGP, IS-IS, OSPF, and static routing
		BFD for VXLAN
		Traffic classification based on Layer 2 headers, Layer 3 headers, and Layer 4 protocol priorities
QoS	ACL, CAR, re-marking, and scheduling
		Queue scheduling modes such as PQ, DRR, and PQ+DRR
		Congestion avoidance mechanisms such as WRED and tail drop
		Traffic shaping
		1588v2
Intelligent O&M	Network-wide path detection
		Telemetry
		Enhanced ERSPAN
		In-situ Flow Information Telemetry (IFIT)
		Packet Event: packet loss visualization and ultra-long latency visualization
		VXLAN OAM: VXLAN ping and VXLAN tracert
